Beyond the Size!

This wood fireplace offers peace of mind due to the combination of energy efficiency and clean heating. A simple solution; its clean design suits any type of décor.

Large fireplace. Behind its large glass door, the 4.28 cubic foot combustion chamber can hold an impressive 60 lbs of wood.

Low emissions. This energy efficient fireplace complies with the EPA’s clean-air standards (only 1.8 g/hr of emissions).

High efficiency. The Horizon fireplace is capable of heating large spaces and burns for 10 hours.

Starting at : $6,499 US*
*All black

  • Model # : OB04010
  • May qualify for some government incentives.
  • Baffle type : C-Cast or equivalent
  • Flue outlet diameter : 8"
  • Optimum efficiency : 70 %
  • Average particulate emissions rate : 1.6 g/h
  • Recommended heating area-ft² : 1,000 - 2,800
  • Combustion Technology : Non-catalytic
  • Maximum burn time : 11 h
  • Tested and listed as per applicable standards : By an accredited laboratory (CAN/USA)
  • High-efficiency certified appliance
  • Glass air-wash system
  • Premium quality blower included (CFM) : 176
  • Moulded refractory bricks
  • Stainless-steel secondary-air system improving gas combustion
  • Baffle type C-Cast or equivalent

  • Chimney diameter 8"

  • Flue outlet diameter 8"

  • Firebox – dimension (Height) 17"

  • Firebox – dimension (Width) 25 3/8"

  • Firebox – dimension (Depth) 17 7/8"

  • Overall dimension (Height) 43 3/8"

  • Overall dimension (Width) 50 3/4"

  • Overall dimension (Depth) 31 3/4"

  • Door opening – dimension (Height) 12 3/4"

  • Door opening - dimension (Width) 33"

  • Optimum efficiency 70 %

  • Average particulate emissions rate 1.6 g/h

  • Warranty Limited lifetime

  • Minimum chimney height (feet) 15'

  • Maximum log length 25"

  • Shipping Weight 560 lb (254 kg)

  • Log positioning Loading over width

  • Maximum heat output (dry cordwood) 95,000 BTU/h (27.8 kW)

  • Overall heat output rate (max.) 43,000 BTU/h (12.6 kW)

  • Overall heat output rate < 16,900 BTU/h (5.0 kW)

  • 64 %

  • 69 %

  • Recommended heating area-ft² 1,000 - 2,800

  • Glass surface – dimensions (Width X Height) 29 3/4" X 13 1/2"

  • Average CO 159.0 g/h

  • Combustion technology Non-catalytic

  • Maximum burn time 11 h

  • Tested and listed as per applicable standards By an accredited laboratory (CAN/USA)

  • Type of chimney CAN/ULC S629, UL 103 HT (2100 °F)

  • Fuel type Dry cordwood (16" recommended)

  • Door type Double, glass with cast iron frame

  • Glass type Ceramic glass

  • Overall firebox volume-ft³ 4.28

  • Canadian Standard (emissions) CSA B415.1-10

  • USA standard (emissions) EPA / ASTM WK47329

  • Canadian standard (safety) ULC-S610

  • USA standard (safety) UL 127

  • Glass air-wash system Yes

  • High-efficiency certified appliance Yes, EPA 2020 approved

  • Moulded refractory bricks Yes

  • Stainless-steel secondary-air system improving gas combustion Yes

  • Premium quality blower included (CFM) 176

  • EPA loading volume-ft³ 4.28

  • Optimum heat transfer efficiency 69 %

Printable Templates

pdf

PDF File

This PDF file allows you to easily manipulate, transfer, print, etc.

Customer reviews

88% of the last 30 homeowners who have registered their warranty are satisfied with this product
The reviews or ratings you are reading come from homeowners who have bought the product and registered their warranty online. Therefore, in order to write a review, you must have purchased the product and you must register your warranty using our Warranty Registration section. Information about your product, such as its serial number, will be requested.
The reviews or ratings you are reading come from homeowners who have bought the product and registered their warranty online. Therefore, in order to write a review, you must have purchased the product and you must register your warranty using our Warranty Registration section. Information about your product, such as its serial number, will be requested.

Heating cost calculation

Select your country
What is your current annual heating cost ?
What type of combustible do you currently use ?
Can you specify the unit cost of your actual combustible ?
What is the combustible you wish to compare ?
Can you specify the unit cost of combustible to compare ?
Your annual estimated saving with
* For wood, all calculations are based on a full cord measuring 1,2 m X 1,2 m X 2,4 m (4 ft X 4 ft X 8 ft). In certain regions of Canada, we call a cord what is in fact a third of a cord: 0,4 m X 1,2 m X 2,4 m (16 in X 4 ft X 8 ft). If what you buy is a third of a cord, multiply the price by 3. For the efficiency variable, we assume in our calculations that the stove used is one tested according to the EPA or CSA B415.1 standards.
Terms and conditions

Terms and Conditions

1. This calculator enables you to compare your current heating system and combustible with other heating systems or combustibles. However, we deny any responsibility and offer no guarantee as to the accuracy and integrality of the data supplied.

2. The results obtained from this calculator must only serve as a guide and cannot replace the detailed calculations performed by a specialist. For a detailed evaluation of your heating costs, please consult a professional.

3. By using this calculator, you automatically agree to the conditions stated above.

4. This calculator was carefully programmed. However, some computer errors may occur. If you encounter any error, please do not hesitate to communicate with us at : marketing@sbi-international.com



Minimum clearances to combustibles (Data expressed in inches. 1 inch = 25.4 mm)
MurArCi
MurLaCi
ParLaCi
TabCAi
PlanCAi
ConNcCCi
ConNcHCi
ManCoCi
ManSuCi :
DesSCAi :

Options

Others

AC02780 - 60" WASHED CEDAR NON-COMBUSTIBLE MANTEL
AC02780 English US
AC02781 - 72" WASHED CEDAR NON-COMBUSTIBLE MANTEL
AC02781 English US
AC02782 - 60" TAVERN BROWN NON-COMBUSTIBLE MANTEL
AC02782 English US
AC02783 - 72" TAVERN BROWN NON-COMBUSTIBLE MANTEL
AC02783 English US

Heat management system

AC01350 - 6"Ø X 25' INSULATED FLEX PIPE FOR FORCED AIR KIT
AC01350
AC01378 - WARM AIR CIRCULATION GRILLE - MODERN
AC01378 English US
VA4460 - FORCED AIR KIT
VA4460 English US

Required accessories

Requires the addition of required accessories to complete the unit

Brick

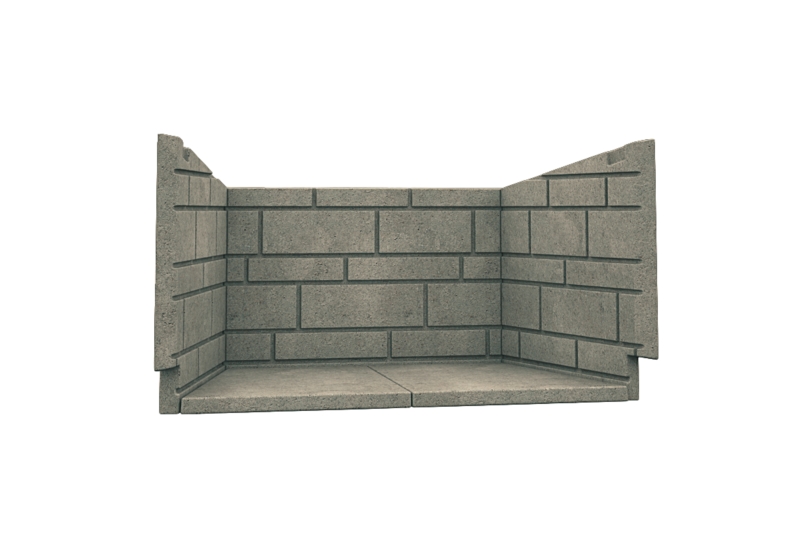

AC02360 - CLASSIC MOULDED BRICK PANELS
AC02360

Faceplates

OA10630 - MODERN FACEPLATE
OA10630

Accessories

Adhesives, gaskets and insulation
HIGH TEMPERATURE RED SILICONE (300 mL- 10.1 FL.OZ.)

AC02040

HIGH TEMPERATURE RED SILICONE (300 mL- 10.1 FL.OZ.)

A premium quality 100% silicone sealant that stays permanently flexible. Suitable for sealing around oven windows, flues on gas appliances, joints and metal stacks and ductwork. An excellent gasket maker to replace existing cork and felt rubber. Ideal for holding gaskets around stove and fireplace doors. Oxygen sensor safe. Withstands continuous temperatures up to 260°C (500°F) with temperature peak at 316°C (600°F).


HIGH TEMPERATURE CLEAR SILICONE (300 mL - 10.1 FL.OZ.)

AC02045

HIGH TEMPERATURE CLEAR SILICONE (300 mL - 10.1 FL.OZ.)

A premium quality 100% silicone sealant that stays permanently flexible. Suitable for sealing around oven windows, flues on gas appliances, joints and metal stacks and ductwork. An excellent gasket maker to replace existing cork and felt rubber. Ideal for holding gaskets around stove and fireplace doors. Oxygen sensor safe. Withstands continuous temperatures up to 232°C or 450°F.


3/4" x 6' x 1/8" FLAT BLACK SELF-ADHESIVE GLASS GASKET (AC-GGK)

AC06400

3/4" x 6' x 1/8" FLAT BLACK SELF-ADHESIVE GLASS GASKET (AC-GGK)

Fits on most FLAME wood stoves with a glass door and other brands.


3/4 User guide

SILICONE AND 5/8" X 8' BLACK DOOR GASKET KIT (AC-DGKNC)

AC06500

SILICONE AND 5/8" X 8' BLACK DOOR GASKET KIT (AC-DGKNC)

Includes one 8-foot long (2.4 m) by 5/8 inch diameter (16 mm) black gasket and one tube of original high-temp adhesive. Recommended for high efficiency wood stoves and fireplaces.


Paint
METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL

AC05959

METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL


METALLIC BLACK STOVE PAINT - 85 g (3oz) AEROSOL

AC05963

METALLIC BLACK STOVE PAINT - 85 g (3oz) AEROSOL

Fits most products with a metallic black finish.


Maintenance products
PULL RING (3/8" NPT)

AC04511

PULL RING (3/8" NPT)

Useful to connect to brushes such as brushes #AC04500, #AC04501 and #AC04502.


KEVLAR THREAD WOOD STOVE 14'' AND FIREPLACE GLOVES

AC07820

KEVLAR THREAD WOOD STOVE 14'' AND FIREPLACE GLOVES

Recommended for a clean and safe use of any type of wood-burning appliance. Fire-resistant kevlar sewings.


19" KEVLAR THREAD SEWN FIREPLACE GLOVES

AC07822

19" KEVLAR THREAD SEWN FIREPLACE GLOVES

Thermal protective gloves with long cuffs (19" or 48 cm):

  •  Ideal for stove, fireplace and barbecue
  •  Highly resistant to high temperatures
  •  Genuine leather and kevlar seams for increased durability
  •  Maximum protection against all heat sources (covers the entire forearm)
  •  Strong and flexible glove with reinforcement at the level of the hand
  •  One-sized with cotton lining for comfort
  •  Practical leather support buckle


DRY CLEANING PAD

AC07824

DRY CLEANING PAD

Easily cleans the soot from glass without water.


WOOD APPLIANCE GLASS CLEANER (500 mL - 16.9 FL.OZ.)

AC07825

WOOD APPLIANCE GLASS CLEANER (500 mL - 16.9 FL.OZ.)

Recommended for cleaning the glass of any type of wood-burning appliance.


Meters
DIGITAL MOISTURE READER

AC07835

DIGITAL MOISTURE READER

Accurately and professionally measures moisture in wood logs.


DIGITAL MOISTURE READER User guide

PINS KIT FOR DIGITAL MOISTURE READER (4 UNITS)

AC07836

PINS KIT FOR DIGITAL MOISTURE READER (4 UNITS)

2 small and 2 large pins for digital moisture reader.


Options
HEAVY DUTY STAINLESS STEEL COOKING GRATE

AC01196

HEAVY DUTY STAINLESS STEEL COOKING GRATE


60" WASHED CEDAR NON-COMBUSTIBLE MANTEL

AC02780

60" WASHED CEDAR NON-COMBUSTIBLE MANTEL


60 User guide

72" WASHED CEDAR NON-COMBUSTIBLE MANTEL

AC02781

72" WASHED CEDAR NON-COMBUSTIBLE MANTEL


72 User guide

60" TAVERN BROWN NON-COMBUSTIBLE MANTEL

AC02782

60" TAVERN BROWN NON-COMBUSTIBLE MANTEL

What's better than a shelf to enhance and showcase the richness of your fireplace? Thanks to its exclusive blend of cement concrete reinforced with glass fibers for increased durability, this beautiful shelf offers you a multitude of possibilities as it is not subject to any clearance standard. Handcrafted by a molding process making each shelf a unique piece, the trompe-l'oeil effect mimics wood to perfection and offers an incomparable aesthetic finish.
A color sample is included with the shelf to mask any imperfections. Dimensions: length 60" x width 7 1/2" x depth 8".


60 User guide

72" TAVERN BROWN NON-COMBUSTIBLE MANTEL

AC02783

72" TAVERN BROWN NON-COMBUSTIBLE MANTEL

What's better than a shelf to enhance and showcase the richness of your fireplace? Thanks to its exclusive blend of cement concrete reinforced with glass fibers for increased durability, this beautiful shelf offers you a multitude of possibilities as it is not subject to any clearance standard. Handcrafted by a molding process making each shelf a unique piece, the trompe-l'oeil effect mimics wood to perfection and offers an incomparable aesthetic finish.
A color sample is included with the shelf to mask any imperfections. Dimensions: length 72" x width 7 1/2" x depth 8".


72 User guide

Fire starters
FIRE LIGHTING GEL (1 L - 32 FL.OZ.)

AC02550

FIRE LIGHTING GEL (1 L - 32 FL.OZ.)

Recommended for lighting-up oil, wood, and pellet stoves. Leaves no residue. Odorless.


WOOD PARTICLES AND WAX FIRE STARTER

AC02595

WOOD PARTICLES AND WAX FIRE STARTER

96 wooden sticks and wax. A piece burns up to 12 minutes.


SACHET POUCHES FIRE STARTER

AC02597

SACHET POUCHES FIRE STARTER

Paraffin sachet pouches. Odorless.


ONE-STRIKE FIRE STARTER

AC02598

ONE-STRIKE FIRE STARTER

Specially treated fibrous wood prepared with paraffin wax, pre-cut into sticks with ignition head on the bottom of the sticks and striking surface on package.


WOOD AND PARAFFIN FIRE STARTER CUBES

AC02599

WOOD AND PARAFFIN FIRE STARTER CUBES

• Only made from wood and paraffin wax; without additional chemicals • Safe, odorless, soot less, strong burning • Easy to handle and easy to use • Can be stored indefinitely and does not dry out • Burn for 12 minute


FIRE LIGHTING GEL (500 mL - 16 FL.OZ.)

AC04099

FIRE LIGHTING GEL (500 mL - 16 FL.OZ.)

Recommended for lighting-up oil, wood and pellet stoves.  Leaves no residue.  Odorless.


FIRESTARTER KIT

AC04520

FIRESTARTER KIT

Need help lighting your fire? Get this economical set of fire starters that includes the 3 following items that are effective, safe, odorless, easy to handle and easy to use: a box of 50 paraffin sachet pouches (AC02597), a box of 24 wood and paraffin sticks (AC02598). Pre-cut sticks with ignition head on the bottom and ignition surface on the package that burns up to 8 minutes and a box of 50 wood and paraffin cubes without chemicals (such as formaldehyde) that does not produce soot. These cubes can be stored indefinitely without risk of drying out. Generates a strong burn with burn time up to 12 minutes.


Fireplace tool sets
48" WOOD STORAGE WITH FINISHING TRIM

AC02351

48" WOOD STORAGE WITH FINISHING TRIM

Built-in or freestanding, configurable vertically or horizontally, you will appreciate the versatility of this wood storage unit. It will most certainly find its place in your decor, whether next to your wood stove, close to your heater or the entrance where it can be used as a bench when positioned horizontally. For a pure and minimalist décor, the box can be integrated inside one of your walls. A finishing trim is provided for this flawless look. Very sturdy, this heavy-steel (14 ga) wood storage is powder-coated and can accommodate logs up to 18" in length. The steel frame contains four concealed wooden blocks to prevent premature wear of your floors. An accessories storage drawer (17" x 15" x 6") is available as an option. Conveniently put away the poker and shovel included with this drawer! Delivered in a compact package, this wood storage unit is very easily assembled. You will be impressed! Made in Canada.


48 User guide

DRAWER AND TOOL KIT FOR WOOD STORAGE INSERT

AC02353

DRAWER AND TOOL KIT FOR WOOD STORAGE INSERT

This accessory storage drawer (17" x 15" x 6") is a great addition to your wood storage. Store the poker and shovel, included with the drawer, for convenience! Look no further and collect all your things in one place.
